15kg YASKAWA Spraying Robot Arm MPX3500 For Painting Cars

Brand Name : Fangyu, Yaskawa

Model Number : MPX3500

Place of Origin : Shanghai, China

MOQ : 1 unit

Price : Price negotiable

Delivery Time : 7-10 days

Payment Terms : TT

Supply Ability : goods in stock

Type : Painting Robots

Condition : New

Machine Type : Painting Robots, Spray Booths, Painting Equipment, P

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2022

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Ge

Coating : Powder Coating

Power : 3 kVA

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Construct

Showroom Location : None

Weight (KG) : 590

Controlled axes : 6

Max. Payload : 15kg

Max. working range R : 2700mm

Power supply, average : 3.0KVA

Repeatability : ±0.15mm

WEIGHT : 590 kg

MOUNTING OPTIONS : Ceiling, Wall, Floor

Contact Now

YASKAWA Paint equipment spraying painting production MPX3500 robot for painting cars

Overview

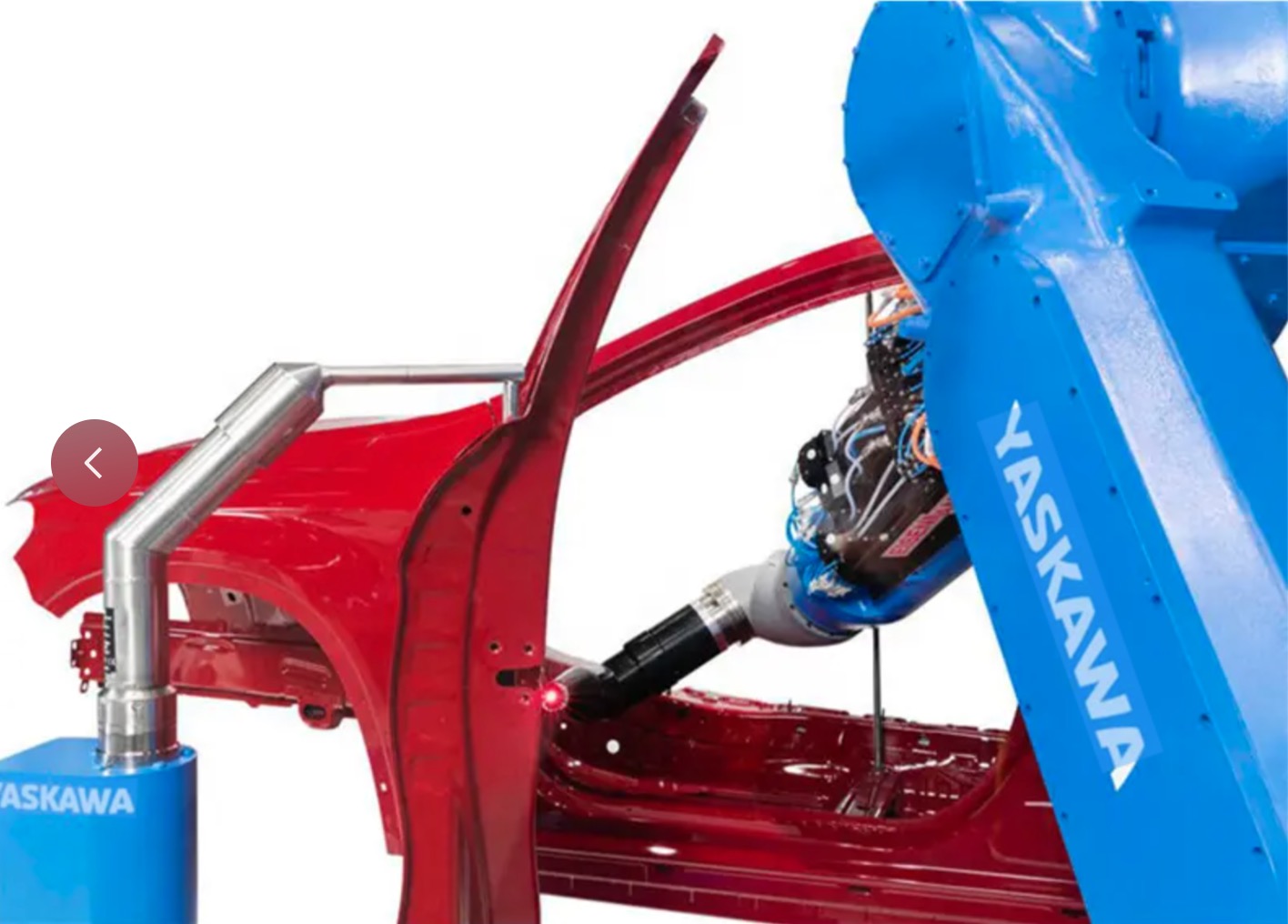

The MOTOMAN MPX3500 (ATEX conformity) is a Painting robot with a reach of 2.700 mm (floor mounted) respective 3.500 mm (wall mounted), designed primarily for Car Body Exterior & Interior Painting in the Automotive Industry. Manipulator Body and process arm provide good mounting space even for large dosing and applicator technology, supporting several paint application technology suppliers. L-Axis and robot base provide different mounting and cable inlet options to place the robot closer to the object, thus
minimizing the footprint of the paint booth. Manipulator and Teach Pendant are available for ATEXT Cat 2 or 3 Standards.
The MPL3500 offers excellent path performance - smooth and fast motion and quick wrist reorientations. The MOTOMAN Paint Software Package simplifies the programming significantly by providing features like Mirroring (left/right side of the booth), Path Switching functions and recovery after stop or color run out.
Technical Details
NUMBER OF AXES
6
PAYLOAD
15 kg
MAX. WORKING RANGE
2700mm
REPEATABILITY
0.15 mm
WEIGHT
590kg
POWER SUPPLY
3kVA
MOUNTING OPTIONS
Floor type, upside-down type, wall-mounted type, tilt type

15kg YASKAWA Spraying Robot Arm MPX3500 For Painting Cars

15kg YASKAWA Spraying Robot Arm MPX3500 For Painting Cars

Company Profile

15kg YASKAWA Spraying Robot Arm MPX3500 For Painting Cars

FAQ

Q: How about your after-sales service?
A:We offer you 24 hours service phone,skype or MSN.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How about your guarantee period?
A: One year.If you have any questions during this time,we will solve it for free.
Q:How to provide robot packing solution?
A:Provide your packing requirments, like produts, packing way, workshop area.
Q:How to desing robot gripper/tongs/grab/arm?
A: According to client demand to design.
Q: How ensure our robot grip/tongs/grab works?
A: Before shipping, we will make test and we send test video to clients.
